50's Plywood Restore

by Jim Kronholm
(Bristol, WI, USA)

I am restoring a Wagemaker Wolverine and would like a step by step plan.

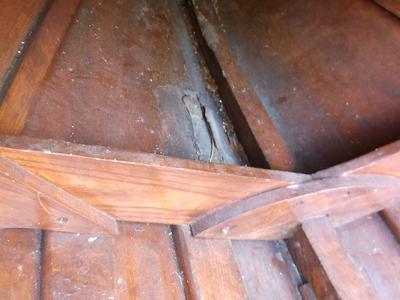

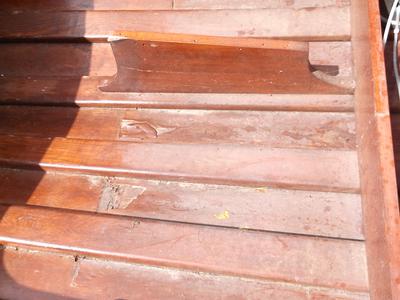

There is some dry rot on the hull under the front seat.

It does not leak.

What products do I need to prep this before varnishing.

Any info appreciated;
Jim



Comments for 50's Plywood Restore

Click here to add your own comments

Jul 07, 2015
Waterline
by: Mike

Is it actual rot or just where the varnish has blistered allowing the top layer of plywood to become damp?

The gap between the frame and the floor may have been blocked at some time, trapping water there.

Always hard to tell from a photo but it looks as though it may just need to be allowed to dry out then perhaps soaking with penetrating epoxy before varnishing.

The top of the grey area looks to be more of less the waterline.

Jul 06, 2015
Product Advice
by: Jim

Thanks for your interest.

Since the damaged sections will not be seen I would like to try liquid epoxy.

Could I simply treat the area with spore killer, seal it, sand it, and apply varnish?

What are the brand names of these products and where can I buy them.

I would not like to cut anything if I don't have to.

Also, where would the paint line be on the outside hull?

Thanks; Jim


Jul 06, 2015
Plywood Repair
by: Cal

Looks in nice shape.

You need to drill a few holes to prevent standing water.

The pictures are great.

You can take a chisel and dig it out, put a patch in, if you do it with glue and are good at it you will not see it.

If not do your best, cut two matching shapes, glue and epoxy cold cure works but you still have the dark wood.

I would cut it out with a router and build a jig.

The flake under the seat is just sand and new varnish.

Good luck, nice boat looks well made.


Click here to add your own comments

Join in and write your own page! It's easy to do. How? Simply click here to return to Your Questions and Answers.

Wolverine Touch-Up

by Jim
(Bristol, WI USA)

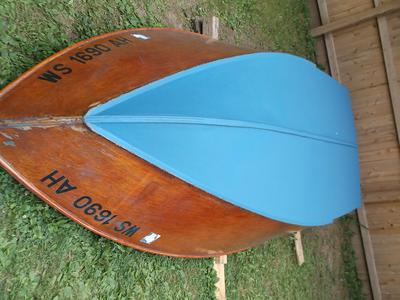

A couple small spot on sides

A couple small spot on sides

A couple small spot on sides Flat or gloss?

The bottom painting is done, so next is the side touch-up.

Is it possible to match the stain, sand, and varnish this small area.

Or should I just strip the sides?

Also would I gain any speed by clear coating the bottom to a smoother finish?

Comments for Wolverine Touch-Up

Click here to add your own comments

Aug 27, 2015
Finish
by: Mike

I doubt if gloss/matt on her bottom would make any difference to her speed.

As for the sides stripping will get you the best results.

Check out the answers previously given to a similar question about Geoff's Peterborough Nomad here.



Click here to add your own comments

Join in and write your own page! It's easy to do. How? Simply click here to return to Your Questions and Answers.
